Mini Bench Centre

SPECIFICATIONS

The ideal centres for checking small components such as pinions, shafts, gear blanks etc.,to the highest degree of precision. Centres are reversible to provide either male or female centres or a combination of both thus giving great versatility. The elimination of springs avoids the bowing or centre damage of delicate or miniature components.


Code No

Admit Between Center

Height of Centre

Working Surface

MASS Kg

2010

150mm

75mm

150*150mm

10

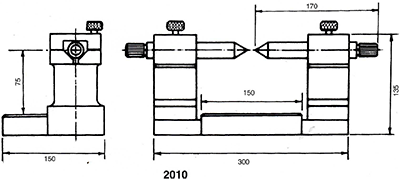

DIMENSIONS
